Underwater Floating Fender Submarine Hydro Pneumatic Rubber Fender

Brand Name : Jerryborg

Model Number : PRF

Certification : BV,EU,BV,GL,SBS

Place of Origin : Shandong, China

MOQ : negotiable

Price : negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000 pieces per year

Delivery Time : 10-20 work days

Brand : Submarine fender

Application : Submarine Protection

Certificate : BV,EU,BV,GL,SBS

Diameter : 500 - 4 500mm

Length : 1 000 - 12 000mm

Material : Rubber

Color : Black, Grey

Feature : High Strength

Contact Now

Submarine Hydro Pneumatic Fender

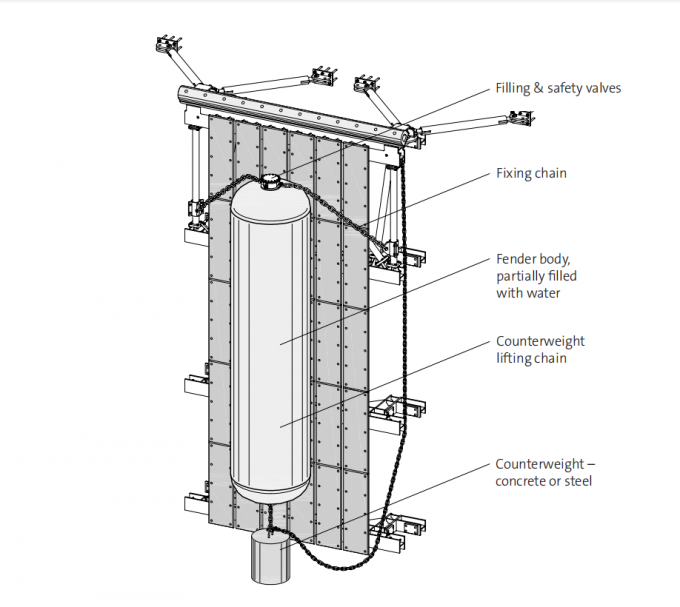

The Hydropneumatic Fender is a special version of the Pneumatic Fender developed for submarines. They are filled with water and air then fitted with a counterweight that holds them upright against submerged hulls, Hydropneumatic Fender are designed to be installed vertically making them ideal for use with submarines or vessels whose impact point is likely to be below the waterline such as Catamarans, Semi-Submersible platforms and Drilling Rigs, protecting submarines and other vessels that make contact below the waterline.

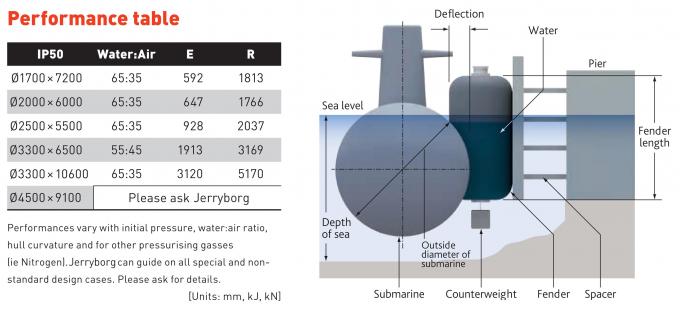

JRB Hydropneumatic Fenders can be performance 'tuned' by varying the initial pressure, water to air ratio and ballast weights to suit the hull curvature and sensitivity of the latest submarines.

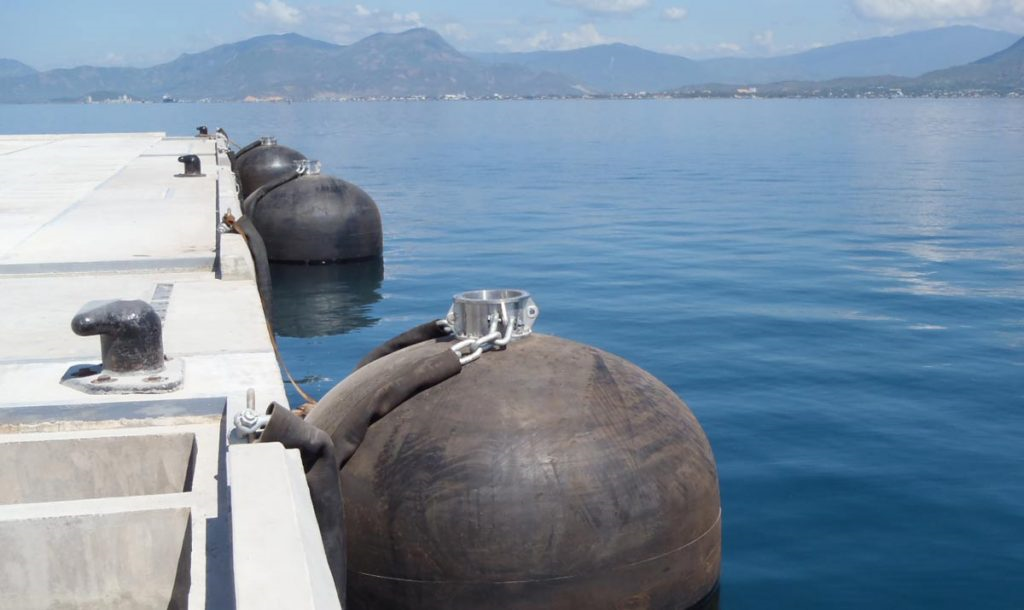

The Hydropneumatic fenders can be installed on most Quay structures and come in a range of sizes to suit the application and a range of vessels.

Underwater Floating Fender Submarine Hydro Pneumatic Rubber Fender



Advantages of JRB pneumatic fenders:



1 Performance can be adjusted by altering the air-water ratio
2 Required draft can be adjusted
3 Low hull pressures
4 Self-adjustment during tidal variation
5 Low installation and maintenance cost



Underwater Floating Fender Submarine Hydro Pneumatic Rubber Fender

SIZE * D
INITERNAL
PRESSURE
BODY WEIGHT
SAFETY VALVE PRESSURE SETTING
TESTING PRESSURE
INITERNAL
PRESSURE
BODY WEIGHT
SAFETY VALVE PRESSURE SETTING
 TESTING PRESSURE
mm(D) * mm(L)
kpa
kg
kpa
kpa
kpa
kg
kpa
kpa
1700 *7200
50
940

200
 80 1140   250
2000 * 6000
50
930

200
 80 1100   250
2500 * 5500
50
1300
175
250
 80 1460 230 300
2500 * 7700
50
1854
175
250
 80 2030 230
300
2500 * 9100
50
2300
175
250
 80 2480 230
300

3300 * 6500
50
2200
175
250
 80 2520 230 300
3300 * 8600
50
3140
175
250
 80 3350 230 300
3300 * 10600
50
4200
175
250
 80 4700 230 300
4500 * 9000
50
5000
175
250
 80 5500 230 300
4500 * 11000
50
5600
175
250
 80 6100 230 300
4500 * 12000
50
7000
175
250
 80 7600 230 300



Please contact us directly about technicel questions on submarine fenders.
Notes: 1. Weight of the fender body and net torrence ± 10%
2. Reaction force torrence ± 10%

Underwater Floating Fender Submarine Hydro Pneumatic Rubber Fender

Safety and Reliability

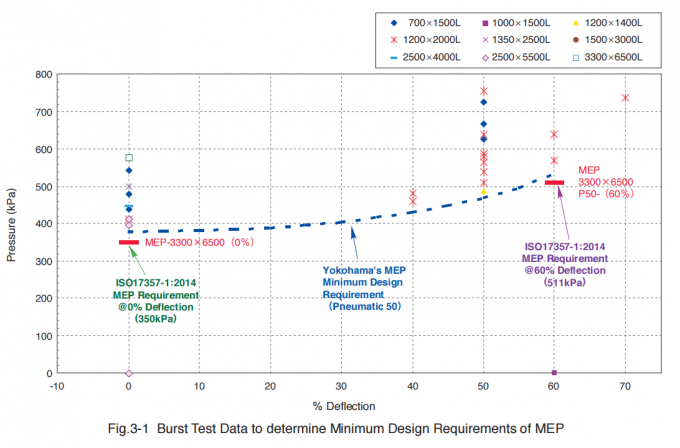

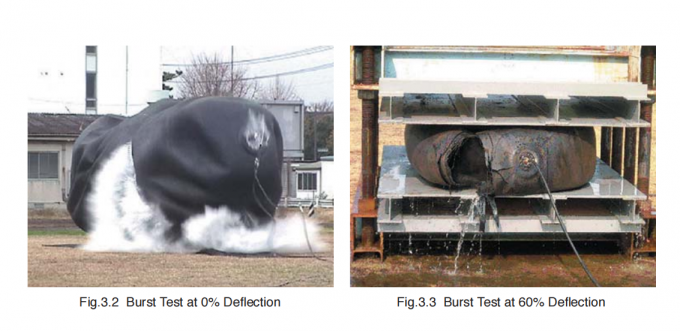

 Pneumatic Rubber Fenders are constructed of several layers of strong tire-cord, and are thus resistant to pressure and cutting. The safety factor adopted in the design of this fender is based on accepted theory and has been proven by extensive experimentation. Operational experience over a long period of time attests to its high safety and reliability, and hydraulic pressure tests have proven the strength to be suitable. Furthermore, large-size fenders are equipped with a safety valve to release the inside air in the event of accidental over-pressure. The figure below shows data obtained from many destructive pressure tests at various percentage compressions. Such data are used to establish a basic minimum endurable pressure (MEP) curve for pneumatic rubber fenders.

Underwater Floating Fender Submarine Hydro Pneumatic Rubber Fender

Underwater Floating Fender Submarine Hydro Pneumatic Rubber Fender

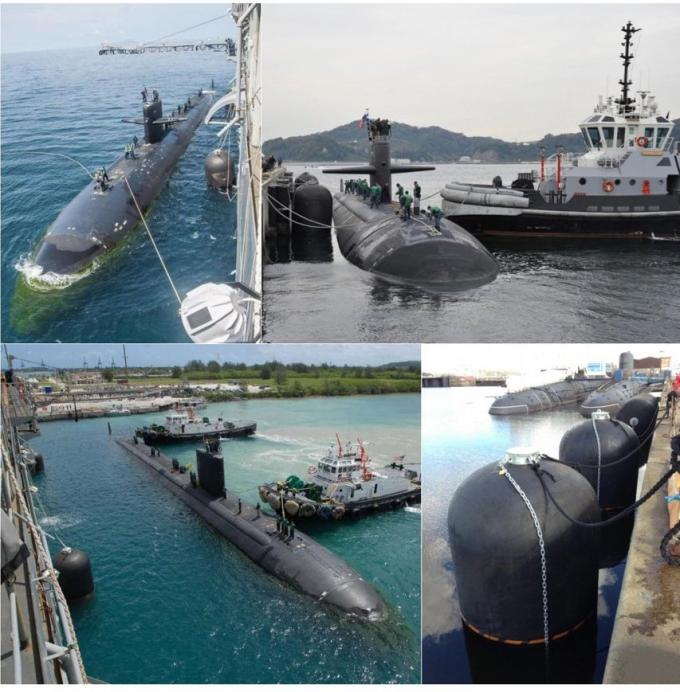

Applications



1. Submarine Jetties
2. Certain Ferry Types
3. Oil Rigs
Underwater Floating Fender Submarine Hydro Pneumatic Rubber Fender
